Understanding EN High Visibility Standards and Certifications

High-visibility (Hi-Vis) clothing is crucial for ensuring the safety of workers in environments where visibility is critical, such as construction sites, roadways, and industrial settings. To meet the varying needs of these high-risk environments, high-visibility garments are subject to strict regulations and standards. In Europe, the EN ISO 20471 standard is the primary benchmark for Hi-Vis clothing, but there are other relevant certifications that help define the level of protection these garments provide. In this article, we'll explore the key EN (European Norm) high-visibility standards and certifications, explaining what they are, how they work, and why they matter.

What Are EN High-Visibility Standards?

The EN (European Norm) standards set the guidelines for the design, performance, and testing of high-visibility clothing. These standards ensure that garments are sufficiently visible in various lighting and weather conditions, reducing the risk of accidents and improving worker safety.

For high-visibility clothing, the most widely recognized EN standard is EN ISO 20471, but there are also other related standards, including those for flame-resistant and protective clothing, as well as those for specific industries. These certifications indicate the level of protection the garment offers in terms of visibility, and they vary depending on the intended use and risk level of the working environment.

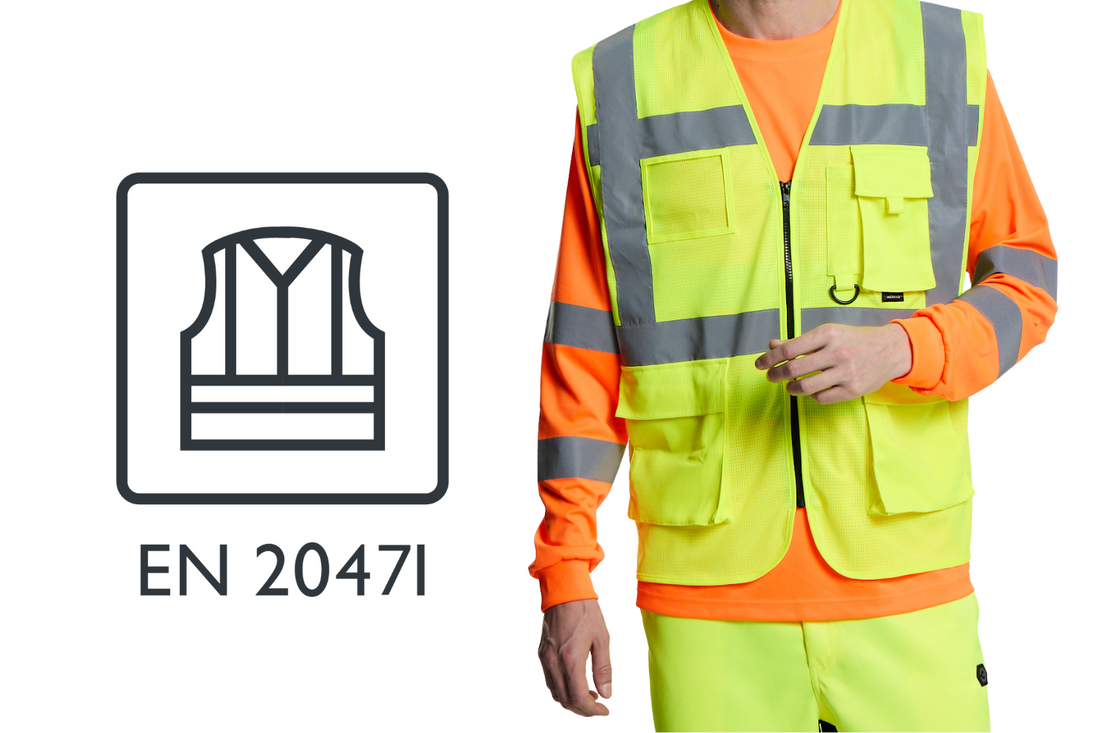

EN ISO 20471: High-Visibility Clothing – Performance Requirements

The EN ISO 20471 standard is the global benchmark for high-visibility clothing used in occupational settings. It outlines the performance requirements for Hi-Vis clothing, specifying how visible a garment must be for it to be considered compliant with the standard.

Key Features of EN ISO 20471

1. Classification Levels: EN ISO 20471 categorizes Hi-Vis clothing into three classes based on the amount of fluorescent and retroreflective material they contain. The higher the class, the more visible the garment is under low-light or night-time conditions. The classes are:

   • Class 1: The lowest level of visibility. This is suitable for workers in environments with low risk, such as in parking lots or warehouses.
   • Class 2: Provides medium visibility. This level is typically used in environments where there is a moderate risk, such as roadside workers or workers in areas with low traffic.
   • Class 3: The highest level of visibility. This class is required for workers in high-risk situations, such as highway maintenance workers, emergency responders, and those working near moving vehicles.

   Note: The clothing must have a combination of fluorescent material (for daytime visibility) and reflective material (for visibility in low light). The minimum area requirements for both types of material vary according to the class.

2. Material Requirements:

   • Fluorescent Materials: These fabrics are designed to be visible in daylight and poor weather conditions. The fluorescent colors (yellow, orange, and red) are specifically chosen for their high visibility against a variety of backgrounds.
   • Retroreflective Materials: These materials reflect light back to the source, such as headlights of vehicles, making the wearer visible at night or in low-light conditions. The reflective material must cover a specified percentage of the garment to meet the standard.

3. Garment Types: EN ISO 20471 applies to all types of high-visibility clothing, including jackets, vests, trousers, overalls, and hats. Different types of garments are allowed different minimum areas of reflective material depending on their design and intended use.

4. Testing and Compliance: High-visibility garments must undergo rigorous testing to ensure they meet the standards for both fluorescent and reflective materials. Testing methods include:

   • Luminance factor to assess how well the garment reflects light.
   • Fluorescent material performance in daylight and weathering conditions.
   • Washing and durability tests to ensure the garment retains its reflective and fluorescent properties after repeated use.

Why EN ISO 20471 Is Important

EN ISO 20471 provides clear guidelines for manufacturers, ensuring that workers in hazardous environments are adequately protected. It helps employers select the appropriate level of visibility for the specific conditions in which their workers operate. This standard is internationally recognized, and adherence to it not only ensures safety but also compliance with occupational health and safety regulations in Europe.

Other Relevant EN High-Visibility Standards

While EN ISO 20471 is the primary standard for high-visibility clothing, other standards and certifications may apply depending on the specific needs of the wearer. Some of these standards relate to additional safety features, such as flame resistance, electrical hazards, and other types of protective clothing.

1. EN 1150: High-Visibility Clothing for Non-Professional Use

EN 1150 is a standard for non-professional high-visibility clothing. It applies to garments worn by individuals who are not exposed to the same risks as workers in hazardous environments, such as cyclists, joggers, or pedestrians. The standard is similar to EN ISO 20471 but has lower requirements for visibility since the risks faced by the wearer are considered to be less severe.

Garments conforming to EN 1150 typically meet lower standards for fluorescent and reflective material coverage. For example, they may have less coverage of reflective material, making them suitable for general public use rather than industrial settings.

2. EN 343: Protective Clothing – Protection Against Rain

EN 343 specifies the requirements for protective clothing designed to shield against rain and wet conditions. While not exclusively related to high-visibility clothing, many garments meeting EN 343 standards will also meet EN ISO 20471, ensuring both weather protection and visibility in hazardous environments. EN 343 tests materials for waterproofing and breathability, making it ideal for outdoor workers who face rainy weather.

3. EN 471: High-Visibility Warning Clothing for Professional Use (Superseded by EN ISO 20471)

Previously, EN 471 was the European standard for high-visibility clothing used in professional settings. However, it has since been replaced by EN ISO 20471 to harmonize international safety standards. Despite being superseded, some legacy references to EN 471 may still exist, but manufacturers and regulatory bodies now focus on EN ISO 20471 for high-visibility requirements.

4. EN 13034: Protective Clothing Against Liquid Chemicals (Type 6)

EN 13034 is another important standard for protective clothing, focusing on chemical hazards. Garments that meet this standard protect against low-level chemical exposure while still providing high-visibility. In cases where workers are exposed to both hazardous chemicals and low visibility, clothing may be designed to meet both EN 13034 and EN ISO 20471.

5. EN 14116: Flame-Retardant Protective Clothing

EN 14116 specifies the requirements for flame-retardant clothing, which is particularly important in industries where workers are exposed to fire hazards, such as petrochemical, oil, and gas industries. Flame-resistant high-visibility garments must meet both EN ISO 20471 and EN 14116 to provide protection against flames while ensuring the wearer is visible.

6. EN 4710-1: Roadwork Garments with Hi-Vis Requirements for High-Risk Areas

This is a niche standard applied to roadwork clothing, where high-visibility is critical for workers near active roadways. It mandates specific designs, such as greater reflective material coverage, to ensure maximum visibility in these extremely high-risk settings.

Conclusion: The Importance of EN High-Visibility Standards

EN high-visibility standards play a crucial role in worker safety, ensuring that garments provide adequate visibility in hazardous work environments. The most widely used and recognized standard, EN ISO 20471, sets out specific requirements for fluorescent and reflective materials to protect workers in low-light conditions. It defines the levels of visibility required, allowing workers to be seen from a distance, reducing the risk of accidents and injuries.

Whether you’re a construction worker, emergency responder, or part of a road maintenance team, understanding the relevant EN high-visibility certifications will help you select the right protective clothing for your work environment. By adhering to these standards, employers not only comply with safety regulations but also enhance the safety and well-being of their workforce.
